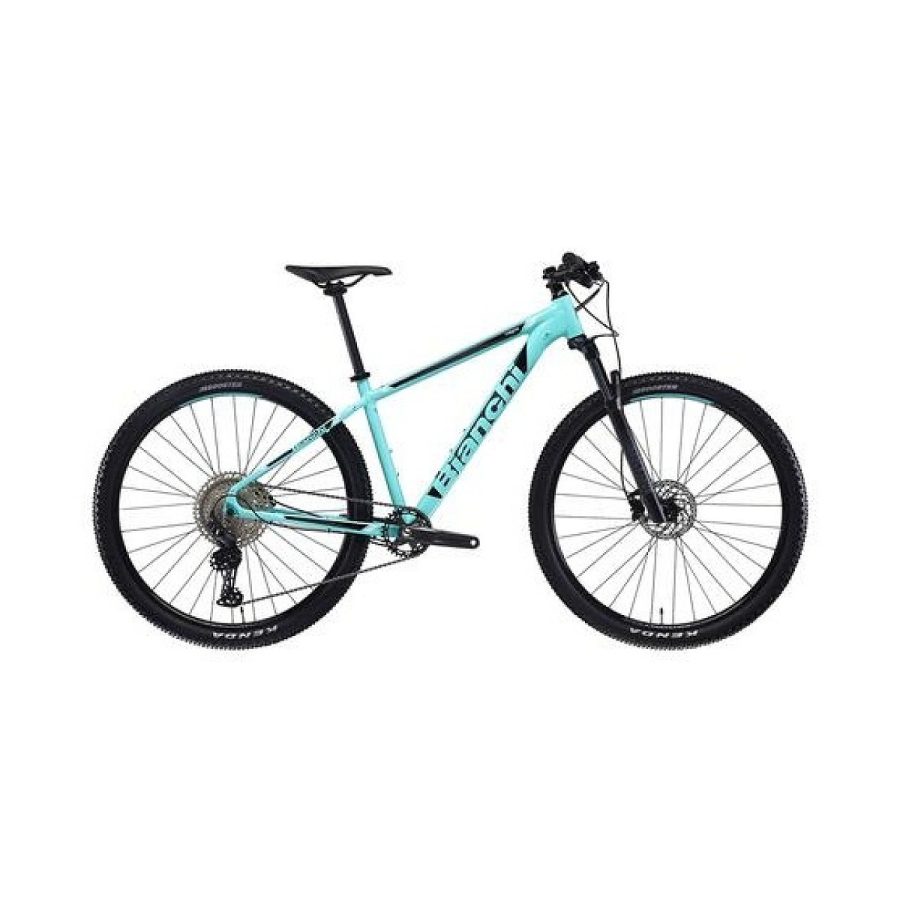

Bianchi Magma 9.0 53 cm (01-YRBR9J536K)

• Frame

Magma 29 alu, 1.1/8" HT, BSA 68 mm, seatpost diam.

• 27,2 mm, HDM bottom pull or
• Side-Swing, PM 160 mm, boost 9x141 mm QR, internal cable routing, sizes 15-17-19-21"
• Fork
• Rock Shox Judy TK 29" 100 mm w/Remote

Lockout,1,1/8" steel HT, alloy crown, coil spring w/pre-load adjust, steel 30 mm stanchions, magnesium lowers w/PM 160 mm disc mount, 9 mm QR Headset.

• Fsa TH888 forged steel cups ID diam.34 mm, stack height 12,8+11=23,8 mm, w/15 mm cap
• Shifters
• Deore SL-M5100-R 1x11, clamp band
• RearDerailleur
• FH-MT200-B for
• Center Lock, 32h 141 mm OLD boost
• FrontDerailleur
• Formula CL-1420 for
• Center Lock, 32h 100 mm OLD, loose balls, axle length 108 mm, w/QR
• Crankset
• Shimano FC-M5100-1, 32T, crank length: 170 mm-15", 175 mm-17/21"
• BB
• Included in the crankset
• Chain
• Kmc X11 EPT finish, 11sp
• Sprocket
• Shimano CS-M5100-11, 11sp, 11-13-15-18-21-24-28-33-39-45-51T
• Brakes
• Shimano BR-MT200, resin pad
• Wheels
• VelomannDP2.5, 622x25c, pin joint, 32h, anodized, no eyelet, Presta valve hole
• RearHub
• FrontHub
• Tire
• Kenda Booster 29x2.20, DTC compound, 30Tpi, wire, etrto 56-622
• Stem
• Velomann 3D forged
• Alloy 6061, +/-7°, 1.1/8 mm, diam
• 31.8 mm, ext: 80 mm-15/17", 90 mm-19/21"
• Handlebar

Velomann Flat top DB Alloy 6061-T6, width 720 mm, diam.

• 31,8 mm, 9° backsweep
• Grips
• T-one T-GP48B, one piece grip, TPR material, 130 mm
• Seatpost

Velomann AL2014 shaft w/alloy head, diam.

• 27.2 mm, 0 mm seatback, length 350 mm
• Saddle
• Velomann, steel rails, PVC soft touch cover, 140 mm width
• Rotor
• Shimano SM-RT10, 160 mm front & rear, Center Lock, for resin pad only
• Materjal: Alu
