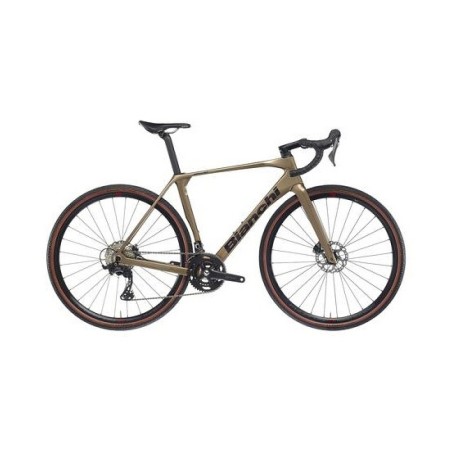

Bianchi gravel Impulso Comp GRX-610 M (01-YTB86IMDF8)

• Frame Disc Brake Specification: Flat Mount 140/160
• Bottom Braket Standard: PressFit 86.5 X diam.41
• Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm
• Front Derailleur: Brazed-on Type Rear Derailleur: sram UDH Hanger type
• Max. chainring
• Compatibility: 46T-52T Fork Bianchi Impulso Integrated Fork Disc Brake Specification: Flat Mount 140/160
• Front Axle:
• Thru12 OLD (Over-Locknut-Dimension): 100 mm
• Tire Clearance: etrto 622-42 mm
• Steer tube
• Diameter: 1 1/8""
• Material: Carbon Fiber Composite Headset Bianchi Custom Acros ICR (Internal
• Cable Rounting) Drivetrain Shifters Shimano GRX 610 ST-RX610
• Rear Derailleur Shimano GRX 820 RD-RX820
• Maximum Cassette Sprocket 36T Front Derailleur Shimano GRX 820 FD-RX820

Crankset Shimano GRX 610 FC-RX610 46-30T Crank Length: 170 mm-XS(47)-SM(51), 172.5 mm-MD(55)-LG(58), 175 mm-XL(61).

• Bottom Bracket Shimano SM-BB72-41B, press fit
• Chain Shimano CN-M7100
• Cassette Shimano CS-HG710-12 speed, 11-36T Driver body
• Interface: HG11
• Brakes Shimano Hydraulic Brake, BR-RX400
• Rotor Shimano SM-RT70
• IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)
• Wheels Fulcrum RapidRed 900 2-Way
• Fit Ready (for clincher and tubeless ready)
• Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm
• Inner Wigth Channel: 22 mm
• Tire Pirelli Cinturato™ gravel H Classic, 40-622 tan sidewall
• Cockpit Stem Velomann aicr
• Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6 mm) HB interface
• Diameter: 1-1/4"" (31.8 mm)
• Stem Lengths: 80 mm
• XS(47), 90 mm
• SM(51), 100 mm-MD(55), 110 mm-LG(58),120m
• XL(61)
• Handlebar Velomann Gravel ICR Alloy Flare: 16° Drop: 130 mm
• Reach 70 mm
• Interface Diameter: 1 1/4"" (31.8 mm)
• HandleBar Widths: 400
• SX(47) SM(51), 420
• MD(55) LG(58), 440
• Grip
• Materjal: Carbon
